Specification
| Max Input Pressure | 100bar |
| Rated Pressure | 40bar |
| Rated Flow | 10L/min |
| Back Pressure | 3bar |
| Work Oil | 46# Anti-wear Hydraulic Oil |
| Oil Temperature | -20~90°C |
| Oil Cleanliness | NAS 9 |

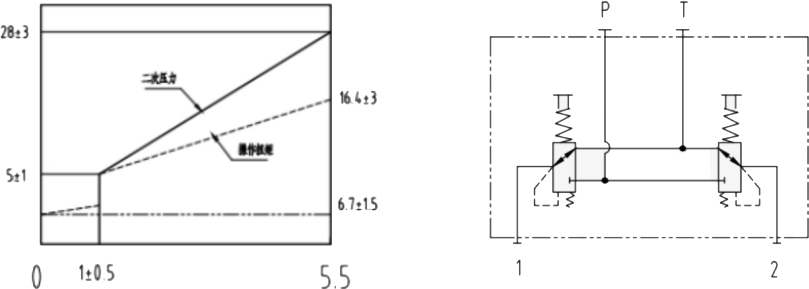

Pressure Curve & Hydraulic Circuit

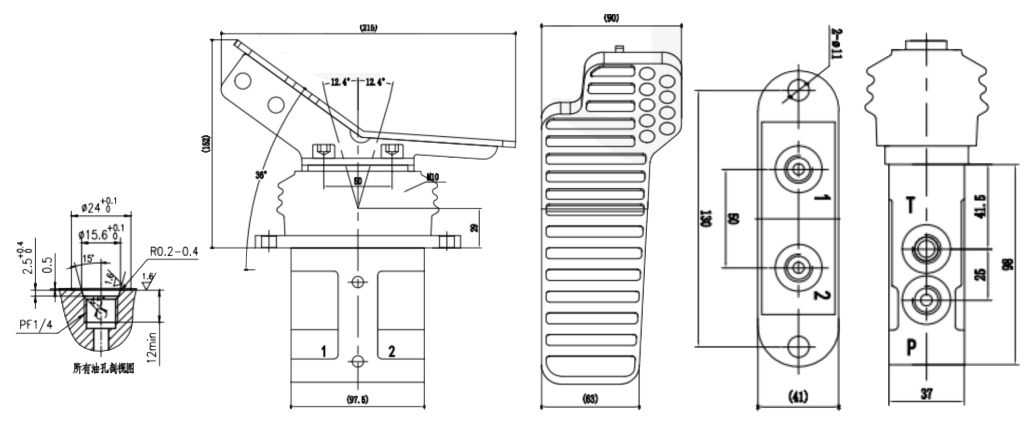

Dimensions
