Mini Excavator Walking Pedal Valve

Features:‌

1. Utilizes high-quality imported copper materials and durable structures, coupled with oil seals and O-rings exclusively developed in collaboration with Japan’s NOK factory, ensuring rigorous multi-item inspections before leaving the factory‌.

2. Employs advanced powder coating technology to protect the valve body, enabling stable operation in harsh environments such as high/low temperatures, humidity, and dust, thereby guaranteeing equipment reliability‌.

3. The manual control directional valve‌ with a spring piston rod‌ achieves directional shifting by controlling vent and exhaust‌, ensuring safe and reliable equipment operation‌.

Working Principle:‌

The manual control directional valve with a spring piston rod achieves directional shifting by controlling vent and exhaust, ensuring safe and reliable equipment operation.

Specification

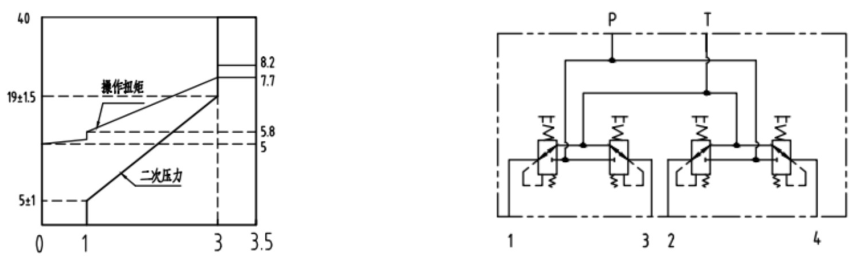

Pressure Curve & Hydraulic Circuit

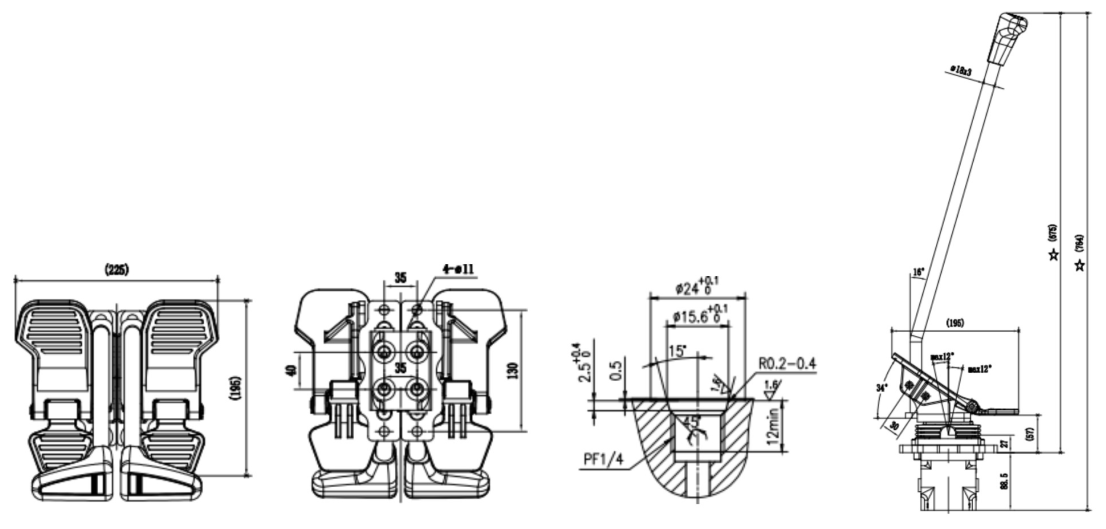

Dimensions
