Mini Excavator Dual Pedal Valve

Features

1. Utilizes high-quality imported copper materials and durable structures, coupled with oil seals and O-rings exclusively developed in collaboration with Japan’s NOK factory, ensuring rigorous multi-item inspections before leaving the factory‌.

2. Employs advanced powder coating technology to protect the valve body, enabling stable operation in harsh environments such as high/low temperatures, humidity, and dust, thereby guaranteeing equipment reliability‌.

3. Offers diverse configurations and options, including various protective sleeves, and valve bodies, allowing equipment manufacturers to customize solutions based on specific application requirements for different excavator setups‌.

Working Principle

Composed of two independent control elements, it can simultaneously or individually control the opening and closing of two valve bodies, achieving independent regulation of different fluid channels.

Application‌

Suitable for excavators, skid steer loaders, backhoe loaders, wheel loaders, forklifts, truck cranes, aerial work platforms, and various construction machinery, meeting hydraulic control requirements across diverse equipment.

Specification

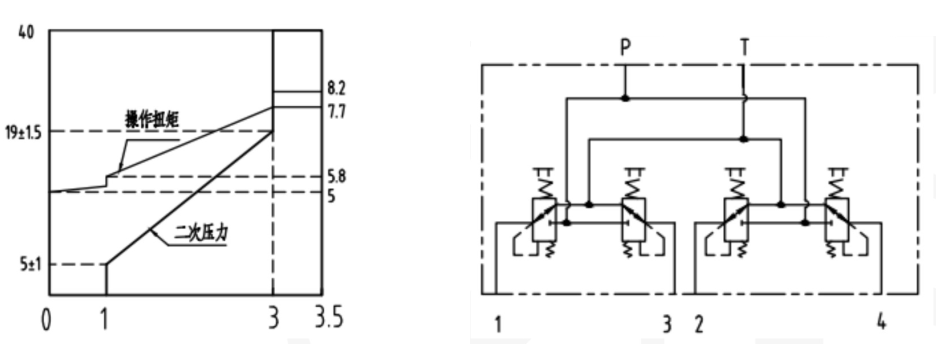

Pressure Curve & Hydraulic Circuit

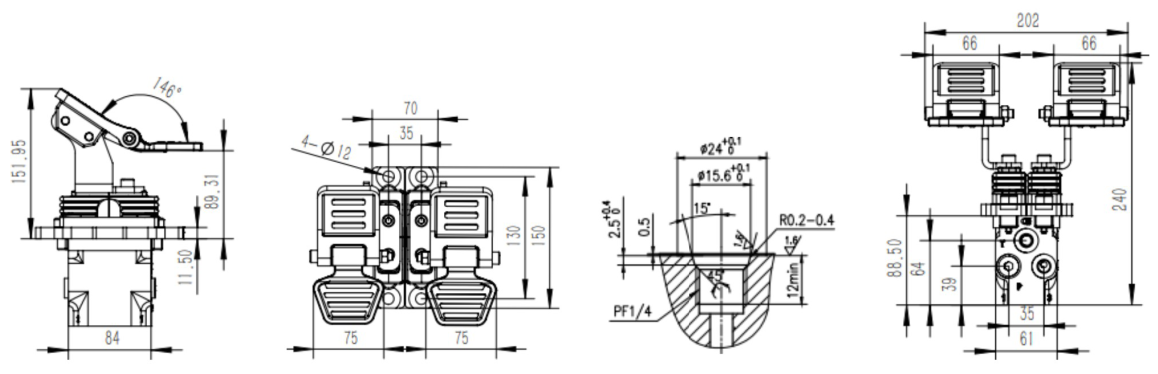

Dimensions
